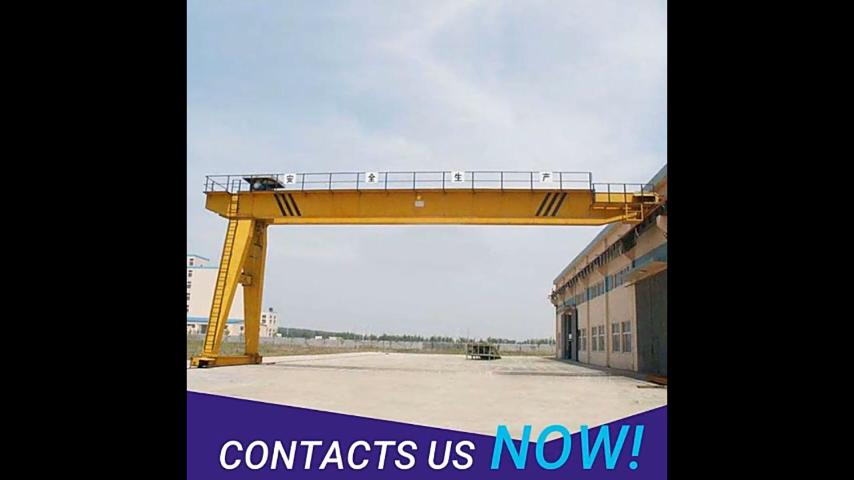

Box-type Single girder semi-gantry crane

Box-type Single girder semi-gantry crane is a type of light small gantry crane with a single girder and rail travelling. The Box-type Single girder semi-gantry crane is designed for generally material handling, with the lifting capacity around 1 to 20 tons, and working class A3, or A4. The specification of the Box-type Single girder semi-gantry crane is as follow:

Components of Single girder semi-gantry crane

Box-type Single girder semi-gantry crane is mainly consisted of gantry frame, i.e. main single girder, legs, bottom end beams, lifting mechanism, travelling mechanism, and electrical control. It can be designed with two hanging arms, one hanging arm or no-hanging arm according to client's lifting requirements and application environment.

Classification of Box-type Single girder semi-gantry crane

Box-type Single girder semi-gantry crane can be divided into box type and truss type.

Box type

The box type Box-type Single girder semi-gantry crane is a medium sized crane, travelling in track , usually equipped with standard CD MD electric hoist as the lifting mechanism, and the electric hoist traversing along the lower flange of the I- steel of the main girder, which is made of high quality steel plates, such as, C-steel and I-steel.

Truss type

The truss-type Single girder semi-gantry crane differentiates itself with the box type crane in terms of structure construction. The former is made of steel bars and the latter is made of steel plates. The truss gantry crane is much lighter than that of the box type gantry crane and it has high wind resistance.
